The Baudouin 6M33 is a six-cylinder diesel engine used in generator sets and marine propulsion around the world. It is known for solid power output and a long service life, but no engine lasts forever. When power drops, oil consumption climbs, or strange noises come from the crankcase, worn internal parts are usually the cause. Replacing them at the right time keeps downtime short and repair costs low. This guide explains which baudouin 6m33 parts wear out first, how to check them, and how to plan a full replacement without guesswork.
Common Signs That Your 6M33 Engine Needs New Parts
Watch for these warning signs during your daily checks:
- Blue or white exhaust smoke
- Falling oil pressure or rising oil consumption
- Loss of power when the engine is under load
- Coolant loss, or oil mixing with coolant
- Knocking sounds or high blow-by from the crankcase breather
If you notice any of these signs, inspect the parts below before the damage spreads to the cylinder head, crankshaft, or main bearings. Catching a problem early can turn a routine repair into a simple job instead of a full rebuild. Keep a record of when each symptom started; it helps the workshop find the cause faster.
Key Baudouin 6M33 Engine Parts to Inspect
Most wear happens inside the combustion area. Start by checking these baudouin 6m33 engine parts during a major service, and work through the list in the order below.
Pistons and Rings
Pistons and rings handle the highest heat and pressure in the engine. Worn rings cause blow-by, oil burning, and low compression. A quality Baudouin OEM piston and ring set restores compression and brings oil consumption back to normal levels.
Cylinder Liners
Liners wear where the piston rings travel, usually at the top of the liner. Check for scoring, glazing, and a visible step at the ring travel limit. If the liner is worn, order a baudouin 6m33 liner kit matched to your piston size, or a single Baudouin cylinder liner for M Series engines. Fitting new rings into a worn liner rarely seals properly.

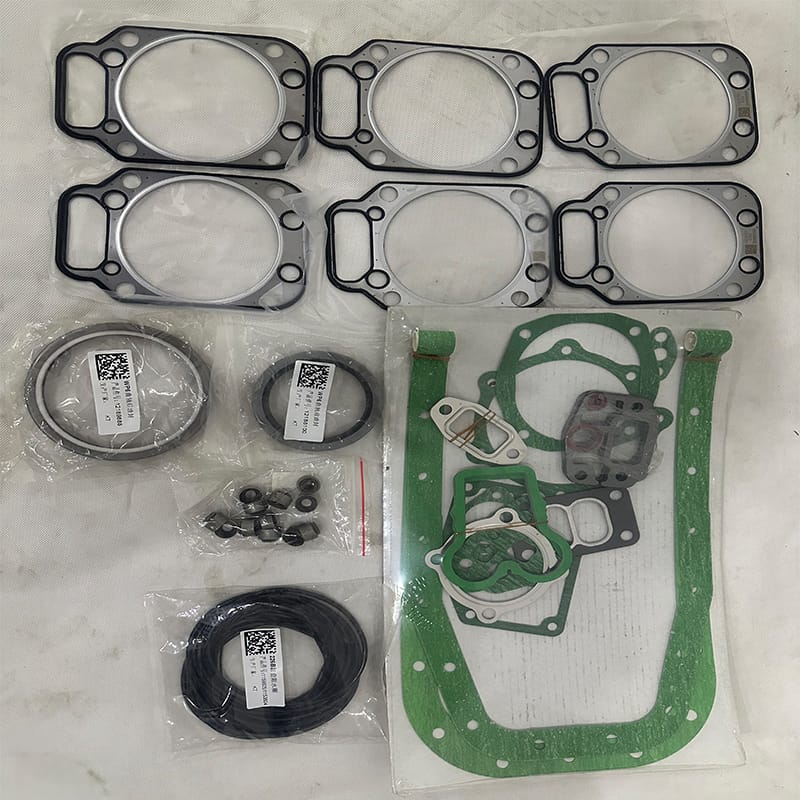

Cylinder Head and Gaskets
The cylinder head seals the combustion chamber and carries the valve train. Cracks often appear between valve seats after overheating. A replacement Baudouin cylinder head for M Series engines with a fresh head gasket is the standard fix in this situation.
How to Choose Quality 6M33 Spare Parts
Not all 6m33 spare parts are equal. Unknown-brand parts may look the same but can fail within months, and a broken part can damage other components. Look for three things when you buy:
- OEM or certified quality parts with clear part markings
- Parts matched to your engine serial number and model
- A supplier that confirms fitment before shipping
Quality baudouin 6m33 parts carry clear markings and come with a full part list, so you can compare them with the old parts you remove. A reliable supplier will also tell you when a part is not the right match for your engine, instead of shipping it anyway.
Plan a Complete Replacement in the Right Order
When several parts are worn at once, buying a full set is cheaper and safer than piece-by-piece repairs. Start with liners and pistons, then move to bearings, gaskets, and the cylinder head. A complete Baudouin M Series engine overhaul kit bundles the main wear items together and removes guesswork.
Always fit a new head gasket and all seals whenever the head is removed. Reusing old gaskets is one of the most common reasons a rebuild fails soon after completion. For most repairs, ordering baudouin 6m33 parts as a matched set is more reliable than mixing brands, because the parts are designed to work together.
Keep a simple log of the parts you fit and the running hours at the time. This record makes the next service faster to plan and helps you order the right components before the engine is opened again.
Frequently Asked Questions
How long do 6M33 engine parts last?
With regular oil and filter changes, major parts such as pistons, liners, and bearings can last many years. Heavy loads, poor fuel, and long idle hours shorten their life, so inspect them at every major service.
Should I replace liners and pistons at the same time?
Yes. New rings fitted into a worn liner will not seal well, and a new liner with old pistons can cause noise and rapid wear. Replacing them together is standard practice and protects your Baudouin piston and ring set investment.
Where can I buy baudouin 6m33 parts online?
EPID Diesel Engine Parts supplies baudouin 6m33 parts directly from the factory, with fitment support before you order and worldwide shipping.
Keep your generator or marine engine dependable with quality replacement parts. EPID Diesel Engine Parts offers a wide range of Baudouin engine parts, from pistons and liners to full overhaul kits, with fast worldwide shipping and technical support before you buy.
