The cylinder head gasket is one of the hardest-working seals on any diesel engine, and the Baudouin M Series is no exception. When this gasket fails, coolant and combustion gases mix, and the engine quickly loses power. Worn cylinder liners cause a separate problem: oil passes into the combustion chamber and the engine burns oil. This guide explains how a baudouin cylinder head gasket fails, what a liner kit includes, and why replacing the two together gives the most reliable result.
Signs That the Cylinder Head Gasket Has Failed
Look for these symptoms during routine checks:
- White smoke from the exhaust
- Bubbles in the coolant, or coolant loss with no visible leak
- Oil that looks milky on the dipstick
- Overheating even with a full cooling system
- Pressure building in the coolant tank
If you see any of these signs, stop the engine and inspect the gasket area. A failed baudouin cylinder head gasket lets hot gases escape, and the heat can warp the cylinder head. What starts as a cheap gasket repair can quickly become a cylinder head replacement, so do not run the engine while you wait for parts.
Check the coolant level and oil condition at the same time. If coolant and oil have mixed, the engine will need a full flush after the repair, so plan for it.

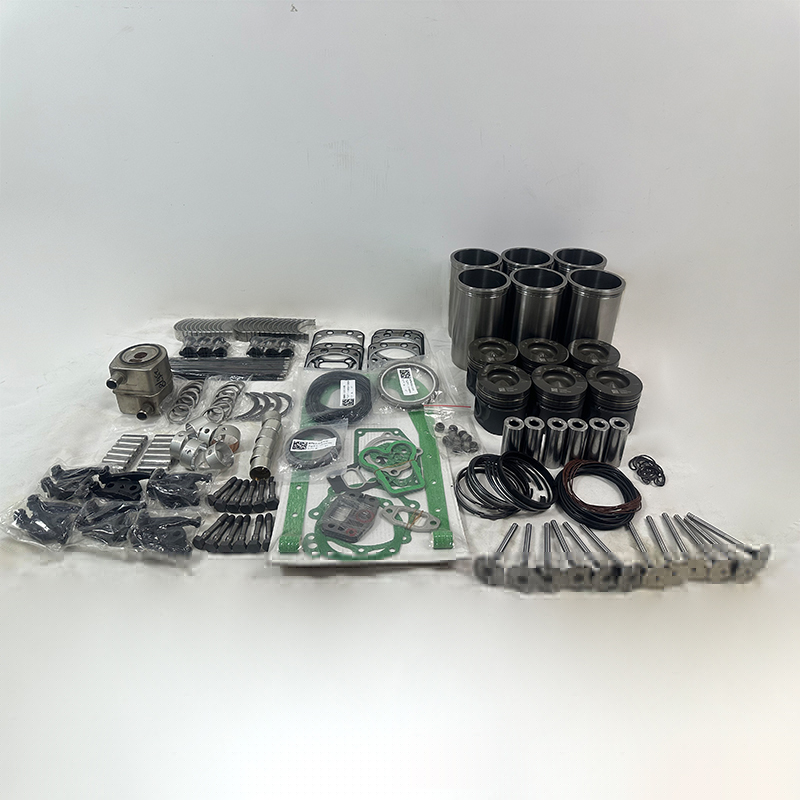

What a Baudouin Liner Kit Includes
A baudouin liner kit usually contains the cylinder liners and their seals, and some kits also include piston rings matched to the liner size. All the parts in the kit are designed to work together, which matters because a liner, ring, and piston set must be matched to seal properly.
Liners come in standard and oversized versions for rebored blocks. Measure your block before ordering, or ask the supplier to confirm the correct size. A Baudouin cylinder liner for M Series engines should always be installed by a workshop that can check clearance and surface finish. If the block is scored, an oversized liner with matching pistons may be needed.
Liner kits are often sold together with the head gasket because the two parts are replaced in the same job. Ordering them as one set saves shipping time and ensures that all the parts are compatible with each other.
Choosing the Right 6M33 Head Gasket
Head gaskets are not all the same. Thickness and material affect compression, and the wrong gasket can cause overheating or poor performance. Use a 6m33 head gasket made for your exact engine model, and check that it matches the head design. If you are unsure, send your engine serial number to the supplier and let them confirm the part.
While the head is off, check the gasket surfaces on both sides. A warped head or a damaged block face will destroy any new gasket within hours, so machine the surface flat before fitting the new part if needed. If the head itself is cracked, a Baudouin cylinder head for M Series engines may be required instead.
Keep the old gasket until the new one arrives. Comparing them side by side is the fastest way to confirm that you have the correct part for your engine.
Replace the Head Gasket and Liners Together
Most workshops replace the head gasket and liners in one job because both parts sit in the same area and the engine has to be opened the same way. Doing both at once saves labor and prevents a second breakdown a few months later, when a liner that was left in place finally fails.
For a full service, order a complete Baudouin full engine gasket set so every seal, from the valve cover gasket to the cylinder gasket, is fresh at the same time. If pistons and bearings are also worn, combine the gasket set with an Baudouin M Series engine spare parts kit for one complete repair package. Do the work in a clean workshop and protect the open engine from dust while the parts are being changed.
Fitting a fresh baudouin cylinder head gasket together with new liners gives the engine the best chance of a long, trouble-free service life.
Frequently Asked Questions
How often should I replace the baudouin cylinder head gasket?
There is no fixed interval for replacing a baudouin cylinder head gasket. It lasts until it fails, or until the head is removed for another repair. If the head comes off for any reason, always fit a new gasket instead of reusing the old one.
Can I reuse my old cylinder liners with new rings?
Usually not. A worn liner will not seal new rings correctly, and the engine may burn oil again within months. If the liner shows wear, replace it with a Baudouin cylinder liner for M Series engines as part of the same job.
What happens if I ignore a blown head gasket?
Coolant can enter the cylinders and damage pistons, and the engine may overheat severely. The longer you wait, the more parts you will need to replace.
Protect your engine with the right seals and liners the first time. EPID Diesel Engine Parts supplies Baudouin engine parts worldwide, including gasket sets, liner kits, and full overhaul kits, with fitment support before you order.
