Correct diesel piston ring orientation is one of the most important details in any engine rebuild, yet it is also one of the most commonly overlooked. If the rings are installed upside down or the end gaps are misaligned, a freshly rebuilt engine can burn oil, lose compression, and fail within the first few hundred hours. This guide explains how to read a piston ring setting diagram, how to stagger the ring gaps, and where to find the right piston kits for Weichai WD615, WP10, and WP7 engines.
Why Diesel Piston Ring Orientation Matters
Piston rings seal the combustion chamber, control oil on the cylinder wall, and transfer heat from the piston to the liner. Every ring is designed to work in one direction only. When a ring is flipped, its tapered or stepped face scrapes the wrong way, pumping oil into the combustion chamber and letting combustion gas leak past. The result is heavy blow-by, blue exhaust smoke, and rapid liner wear.
On Weichai engines such as the WD615, WP10, and WP7, ring sets follow a consistent pattern: a top compression ring, a second compression ring, and a three-piece oil control ring. The top ring takes the highest heat and pressure, the second ring assists sealing and scrapes oil, and the oil ring controls lubrication. Each ring has a marking that tells the installer which side faces the piston crown.
How to Read a Piston Ring Setting Diagram
A setting diagram shows the piston crown in the center and the ring gaps spread around it at fixed angles. The purpose is to keep the end gaps away from each other and away from the thrust side of the bore. Most Weichai service instructions call for the gaps to be staggered at roughly 120 degrees apart, although the exact piston ring gap position depends on the specific piston and ring combination.
Before installation, always check the end gap with a feeler gauge inside the cylinder bore. Place each ring square in the bore and measure the gap against the specification in the engine manual, then mark the gap positions on the piston. Installing the gaps in a straight line is one of the fastest ways to cause compression loss, because gas can travel straight down the aligned gaps.
Step-by-Step Piston Ring Installation Order
Follow the same order on every cylinder to keep the build consistent. Correct piston ring installation also prevents the rings from being damaged as they pass through the ring compressor.
- Clean the ring grooves and check for carbon or burrs
- Confirm the marking faces the piston crown on each ring
- Set the piston ring gap position according to the diagram
- Install the oil control expander first, then the two rails
- Stagger the compression ring gaps before the piston enters the bore
Correct diesel piston ring orientation is easier to hold when the grooves and rings are clean and the correct ring is used for each groove. Take your time with the oil control ring, because the thin rails bend easily if they are forced.
Common Orientation Mistakes That Cause Engine Damage
The most frequent mistake is installing the second compression ring upside down. Many second rings have a tapered face or a small notch on the lower edge, and the marking side must point toward the top of the piston. Another common error is twisting the oil control expander so its ends overlap, which pushes the rails too hard against the bore and creates hot spots.
Always follow the marking rule: any dot, letter, or word stamped on a ring faces the piston crown. If the ring has no marking, check the ring profile. A barrel-faced ring is usually symmetric, while a tapered ring has a visible angle. When you are unsure, install a complete piston kit from a trusted source so the rings match the piston grooves exactly.

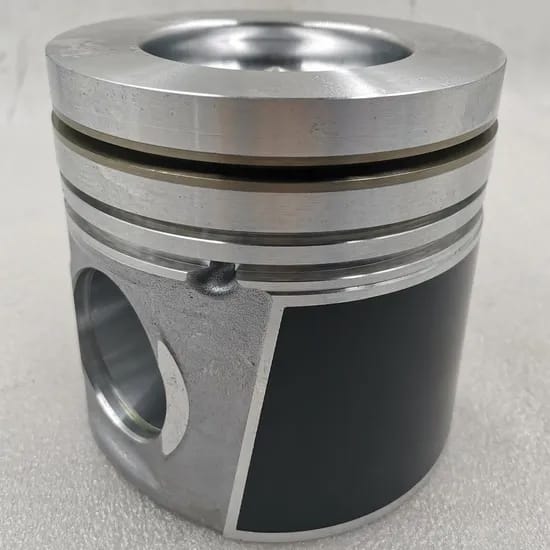

For Weichai WD615E2 rebuilds, the Weichai piston kit WD615E2 includes matched rings for a reliable fit. WP10 users can source the Weichai WP10 piston kit, while the Weichai WP7 piston covers lighter-duty applications.
Frequently Asked Questions
Which way does a piston ring face?
The marked side of a piston ring always faces the piston crown. A dot, letter, or top stamp points upward, away from the crankshaft. If the ring is unmarked, consult the setting diagram or use the ring profile to identify the top edge.
What happens if piston rings are installed upside down?
Installing rings upside down makes the scraper edge work in the wrong direction, drawing oil upward and letting combustion gas leak past. The engine will smoke, consume oil, and lose compression, which is why correct diesel piston ring orientation is checked before the head goes back on.
Where can I buy the correct Weichai piston ring kit?
You can order a matched Weichai piston ring kit with rings included from EPID Diesel Engine Parts, plus full catalogs for the WP10 and WP7 series.
Getting the diesel piston ring orientation right is a small step with a big payoff. Browse the Weichai diesel engine parts catalog to find the piston kit your engine needs.
